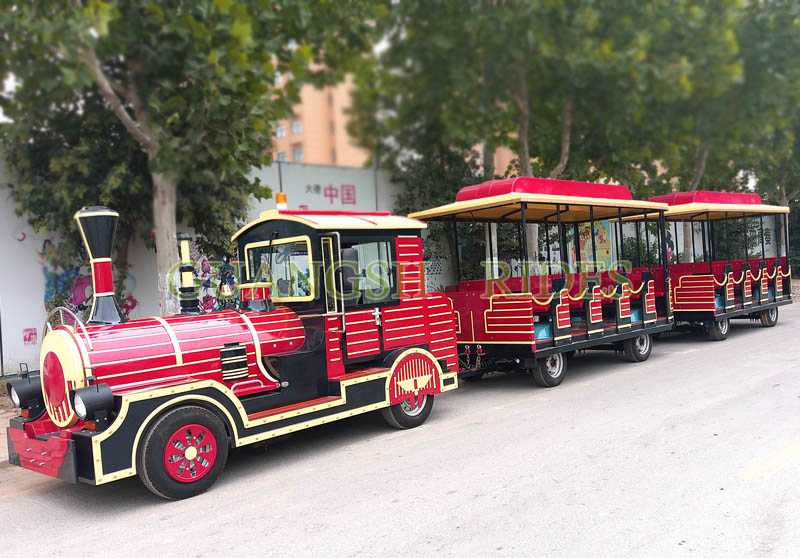

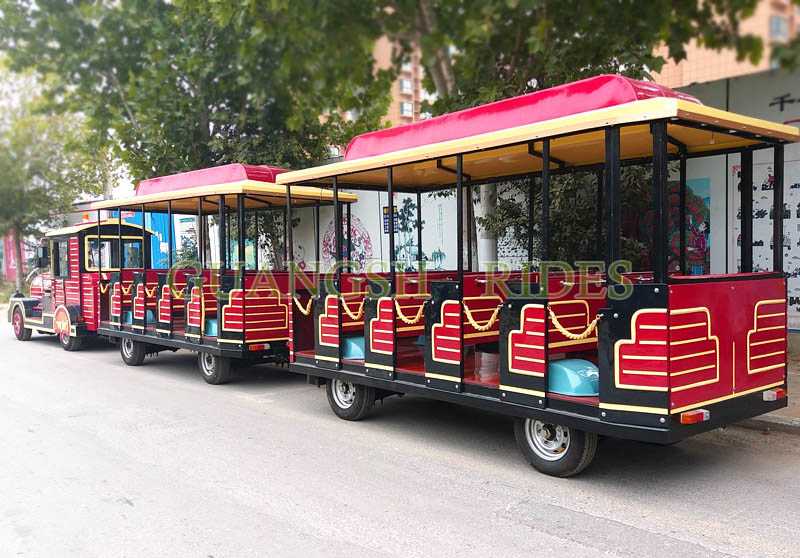

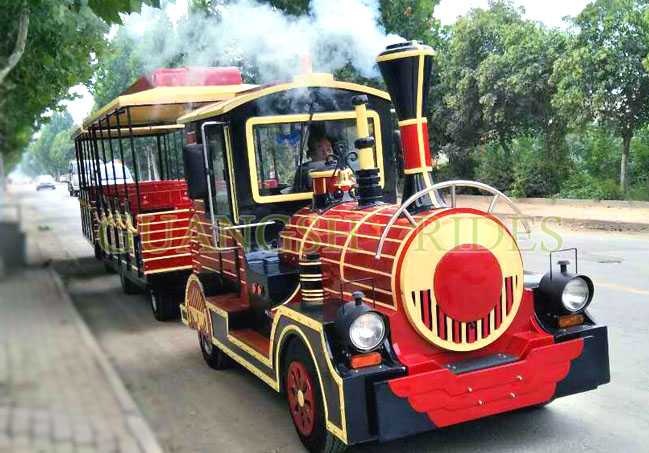

Trackless Train

Model No.: GS-TT-42

The power source of trackless train is mainly divided into two kinds, fuel driven and battery driven. The main carriages are divided into two types: full enclosed compartments and open type carriages. As a special transportation tool, tourist train not only plays the role of transportation, but also makes visitors enjoy the scenery along the way. Some tourist trains can also provide leisure service.

Leave a Message

Chat Online

OVERVIEW
PARAMETER
RELATED PRODUCTS
LEAVE A MESSAGE

PRODUCT INTRODUCTION

/static/themes/default/images/service_li.png

The power source of trackless train is mainly divided into two kinds, fuel driven and battery driven. The main carriages are divided into two types: full enclosed compartments and open type carriages.
As a special transportation tool, tourist train not only plays the role of transportation, but also makes visitors enjoy the scenery along the way. Some tourist trains can also provide leisure service.

Diesel Tourist Train technical data
Performance
Capacity	40+2
Top speed	30km/h
Max. Climbing ability	25%,afford long time climbing
Min.Brake diatance	4m,under full load condition
Min.Turning Radius	7m
Dimensions
Overall dimension(m)	14.61.982.5
Locomotive and Carriage(mm)	Locomotive: 420017002400 Carriage:400019802500
Wheelbase(mm)	2600
Tyre &Tread(mm)	14inch tyre ,tread 600-14
Min ground Clearance(mm)	145
Engine
Mode&brand	QSB3.9-C80-3.1 Cummins diesel engine
Rated speed	2200
ECU brand	BOSCH,Germany
Displacement	2.8T
Emission standard	European standard IV
Gearbox	manual control 5+1
Brake system
Brake system type	Air-assisted oil(Hydraulic drum air brake)
Emergency brakes	Brake automatically encounter the connectionbreak situation
Steering
Steering control	Four-wheel steering
Drag system
Drag rod	Swing tow bar from China
Other configuration
Materials	Body and seat:Fiberglass Chassis structure:Advanced steel pipe
Rust prevention	Pickling + phosphating + rust paint
Painting	automotive grade paint, computer paint, professional spray
Floor of carriages	Stainless steel non-slip flooring
Lights	Front lights, combination taillights, warning lights, driving lights, brake lights, turn lights
Media players	MP5 player, locomotive and carriages with the 7-inch display and 19-inch LED screen
Fan	Movable mini fan
Camera system	Brand-SAFUYWE,China 7 inch screen * 1, camera * 1, control center * 1. Each carriage has a built-in camera
Seat belt	3C certified seat belt
Plastic safety chains	Chain*10pcs each carriage
Station reporter	professional bus station reporting system with GPS
Smoke	Blow smoke
Seat in locomotive	The driver’s seat can be adjusted forwards and backwards

PRODUCT SUPERIORITY: 1. Tourist Train is a special way of transportation in scenic area,at the same time, itself is an important tourist attraction.; 2. Tourist Train can integrate multiple scenic spots, especially for large scenic spots, scenic small train is an effective tool to improve traffic accessibility of scenic spots.; 3.To make Tourism landscape along the way to be rich and varied, various scenes, visual gluttonous dinner for tourists.; 4.Sightseeing stations should be built along the Tourist Trains. Besides the necessary tourist facilities, scenic sightseeing stations should also have colorful tourist activities and projects.; 5.Tourist Train can be effectively coordinated with other means of transportation, effectively organize the traffic system of scenic spots, and achieve seamless docking between scenic spots.
